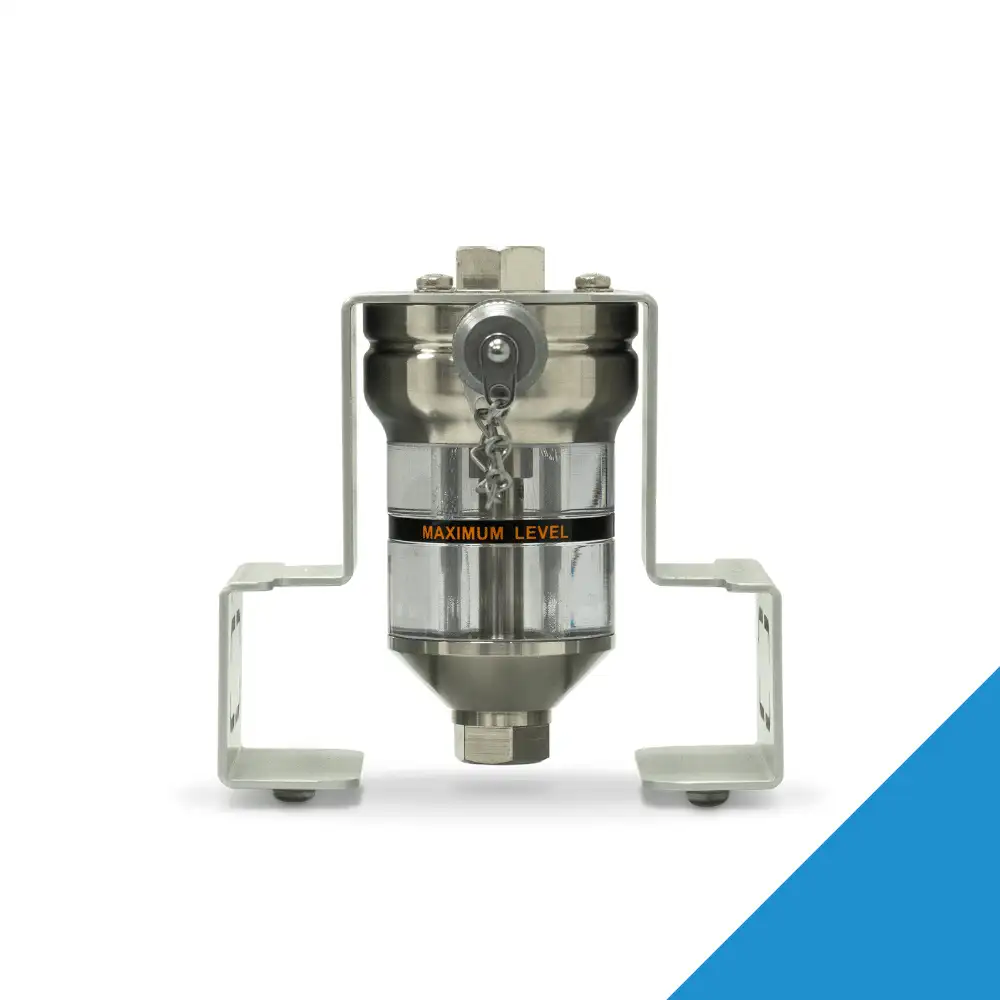

The 7115 is a contamination trap designed for use with pressure equipment, such as controllers, calibrators and pressure generators. It protects against impurities, liquids (water, oil etc.) and residues released by manifolds, gauges, transmitters and other pressure instrumentation under test. The 7115 is primarily intended for use with the 8030 pressure controller and equivalent 8030B CalBench module. It is supplied as standard with both units. The trap provides a level of protection for the controller’s internal system components that require mechanical operation to be smooth and unobstructed.
During pressure testing applications, a controller or calibrator will transition from a higher set point to a lower one. At this time, liquid and residues present in the pneumatic system may flow into the controller/calibrator. This may also occur when selecting negative set points (vacuum). The 7115 is required to filter out contaminants.
Set up is simple and fast, with the trap connected between the controller/ calibrator and the unit under test. The top of the trap indicates the clean side (controller) and the UUT side. The unit is pressure rated from vacuum to 210 bar operation with two high pressure minimess type fittings for connections. Hoses are supplied as standard. It is also suitable for use with calibration manifolds such as the 7161 dual port pneumatic model.Keyfeatures :
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
The 7115 is a contamination trap designed for use with pressure equipment, such as controllers, calibrators and pressure generators. It protects against impurities, liquids (water, oil etc.) and residues released by manifolds, gauges, transmitters and other pressure instrumentation under test. The 7115 is primarily intended for use with the 8030 pressure controller and equivalent 8030B CalBench module. It is supplied as standard with both units. The trap provides a level of protection for the controller’s internal system components that require mechanical operation to be smooth and unobstructed.
During pressure testing applications, a controller or calibrator will transition from a higher set point to a lower one. At this time, liquid and residues present in the pneumatic system may flow into the controller/calibrator. This may also occur when selecting negative set points (vacuum). The 7115 is required to filter out contaminants.
Set up is simple and fast, with the trap connected between the controller/ calibrator and the unit under test. The top of the trap indicates the clean side (controller) and the UUT side. The unit is pressure rated from vacuum to 210 bar operation with two high pressure minimess type fittings for connections. Hoses are supplied as standard. It is also suitable for use with calibration manifolds such as the 7161 dual port pneumatic model.
| Brand |
Time Electronic |
|---|
Time Electronics is a UK-based brand specializing in high-precision calibration and test equipment. The company provides advanced solutions for industries such as electrical calibration, process control, and metrology laboratories.
